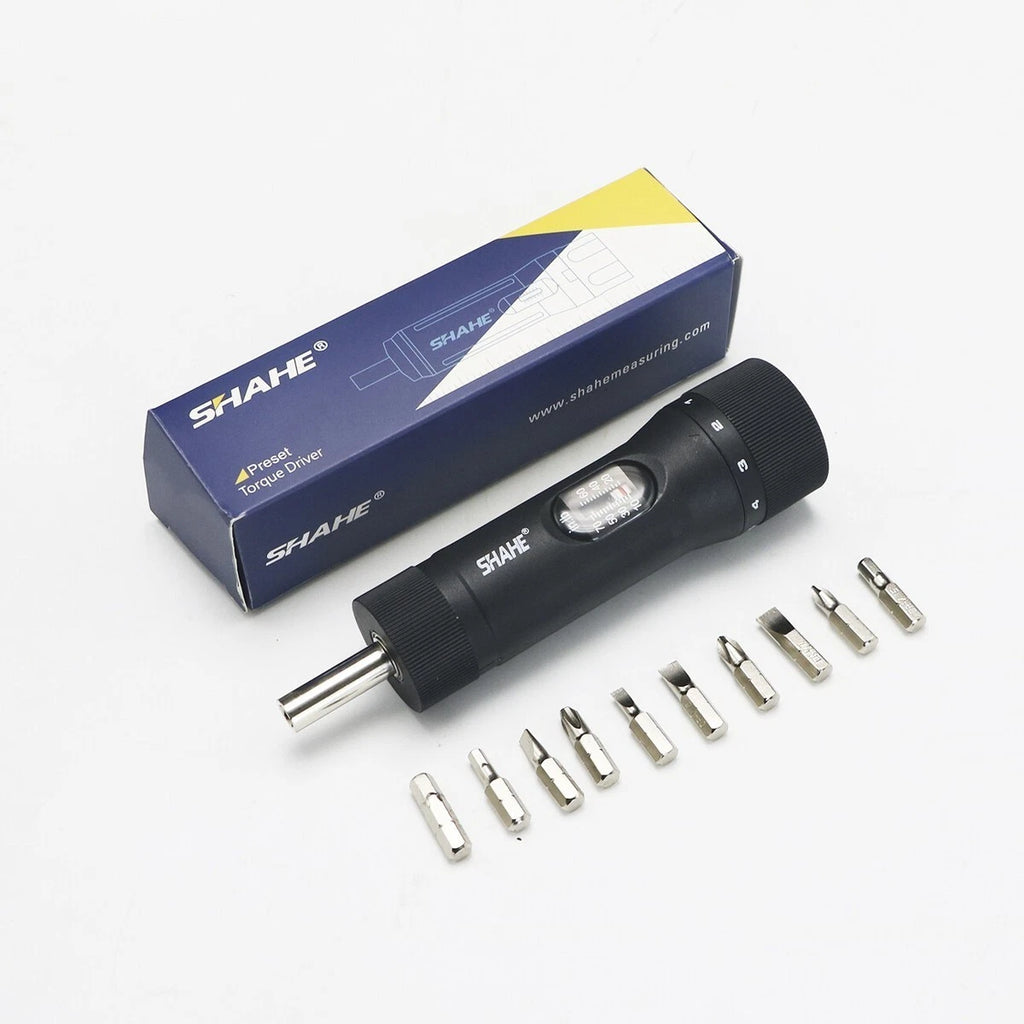

YSQ preset torque screwdriver is used for screw fastening and tightening workpieces with torque requirements. The product operates clockwise, with preset torque values. Over the set value of the screwdriver idling, priority control thread fastening.
It is suitable for precision instrument screw locking, circuit board fixing and other occasions with high requirements for screw locking and high requirements for locking accuracy.
Widely used in a variety of electrical, light industry, mechanical manufacturing, scientific research structure and other industries.
Feature
1, can preset the torque value, and has the sound alarm prompt. When the tightening torque of the fastener reaches the preset torque value, it can automatically send out a signal"Click" sound, accompanied by obvious hand vibration, indicating the completion of work. After the action is removed, all the related parts reset automatically.
2. Clockwise direction use, reverse direction can be disassembled to use, simple and convenient.
3. Use linear scale with zero point indication, the reading of scale line is clear and accurate.
4. The coat is made of nylon, strong and wear-resistant.
5. The torque screwdriver implements the relevant regulations of GB/T 15729-2008.
Model :YSQ-70
Range :10~70(in-lb)
Torque increment:1( in-lb)
Precision:±6%
Length:161.5mm
Outside diameter :Φ42mm
Drive head:1/4'' 6.35 hexagonalable to carry.
Large digital display with backlight, supports display of torque value, unit, working mode, data storage number, easy to understand.
Two-ways measurement, support adjustable in clockwise and reverse direction, can be used in forward and reverse directions, error: 2% clockwise, 2.5% counterclockwise, more convenient to use with ratchet hand. (Wrench to be purchased separately.)
Two working modes, freely switchable between "trace" tracking mode and "peaks" peaking mode.
Four units are available, you can adjust between Kgf.cm, N.m, Ibf.ft and Ibf.in depending on your needs.
Pre-set values with sound and light alarm, preset values according to the torque to be measured, when the buzzer is switched on and the preset target torque value is reached, the buzzer will sound long and the red light will be on.
When used in conjunction with a common ratchet, it becomes a digital torque indicator with the same function as a digital torque plate. (Handle to be purchased separately.)
Widely used in the automotive, bicycle and machinery repairing industries.
Specifications:
Name: Digital Torque Meter
Material: plastics
Models: TQA2-340,
Batteries: 2 * No.7 batteries (not included)
Accuracy: 2% clockwise, 2.5% counterclockwise
Data storage: 999, 999, 999, 999
Indexing values: 0.01, 0.1, 0.1, 0.1
Display ranges: 0.3-30, 1.35-135, 2-200, 3.4-340
Alarm ranges: 0.9-30, 4-135, 6-200, 10-340
Accuracy guarantee ranges: 20-100%, 20-100%, 20-100%, 20-100%
Connection heads size: 1/4inch, 3/8inch, 1/2inch, 1/2inch
Operating mode: P(Peaks)/T(Trace)
Torque units: kgf.cm/N.m/Ibf.ft/Ibf.in
Push button: 6
Operating temperature: -20°C to 70°C
Operating humidity: 15-90%
Automatic shutdown: 60s
Packing List (TQA2-340):
1 * Digital Torque Meter
1 * Screwdriver
1 * Joint Adapter
$54.90
